TX327 MOUNTAIN TRAIL
 |  |  |
|---|---|---|
 |
130mm of trail bliss.
The TX327 can take you just about anywhere. This 130mm of travel trail eating machine, with its long and low geometry giving superior pedal efficiency, makes it the one bike that can do it all. You'll love this bike when the trail points down and love it no less when the trail is going up.
The TX327 comes with all the features you would expect from a modern trail bike. Included is a steep sloping frame with deep seat post insertion for long travel dropper posts, internal cable routing, and plenty of room to fit a full size water bottle, just to name a few. In addition, the TX327 features our new Flat Mount 180 disc brakes, with the rear brake caliper tucked neatly inside the rear triangle and providing exceptional braking power.
FEATURES
6061 ALUMINUM FRAME AND CARBON SEAT STAY AND LINK
Custom formed 6061 aluminum front triangle and chain stay, combined with the carbon link and seat stay, delivers the right combination of light weight and stiffness, in a great looking frame.
FORWARD GEOMETRY
Forward geometry pairs a longer top tube with a shorter stem, pushing the front wheel forward, and slightly shifting the rider weight for improved handling.
FLAT MOUNT 180 DISC BRAKES
Clean, strong and light weight, the Flat Mount 180 rear brake caliper is mounted directly to the frame for a clean look and reduced chance of brake squeal. Tucked inside the rear triangle, the brake caliper is out of the way of rocks, roots and other trail debris. The TX327 comes equipped with the Magura MT Flat Mount brakes, offering a powerful combination of stopping performance and modulation.
INTERNAL CABLE ROUTING
Internal cable routing with full housing keeps the shifter cable away from dirt and grime, allowing for miles and miles of smooth shifting.
FLOATING DERAILLEUR HANGER
Rear axle installation is a breeze. The frame utilizes a floating derailleur hanger nut, allowing it to automatically align with the rear axle during installation.
FOX FLOAT DPS PERFORMANCE EVOL 3 POSITION SHOCK
Custom valved to match the kinematics of the TX327 frame, to deliver the best ride possible. The valving and our kinematics allow for a ride that has a built-in platform early in the travel, linear stroke through the mid portion of the travel before transitioning into a progressive wheel rate to prevent bottom out.
SRAM X01 EAGLE DRIVETRAIN
The Eagle X01 drivetrain has taken the mountain bike world by storm, and for good reason. It's the smooth 1x drivetrain that is lightweight, reliable, durable and provides all the range you need for any terrain.
STANS FLOW MK3 COMP WHEELS
Made from 6069 alloy, Stans Flow MK3 rims are both lightweight and durable, offer a wide 29mm internal profile for a stable tire platform and improved control. The wheels include Stans Neo hubs with sealed bearings and Sapim Race black butted spokes, making these wheels the perfect trifecta of a lightweight, strong and durable wheel set.
MAXXIS MINION, 3C MAXX SPEED, EXO, TR TIRES
One of the most popular trail tires, the Minion has the right balance of rolling speed coupled with traction for braking and cornering. It's hard to find fault with the Minion, which is probably why it's one of the most imitated trail tires in mountain biking.
COMPONENTS

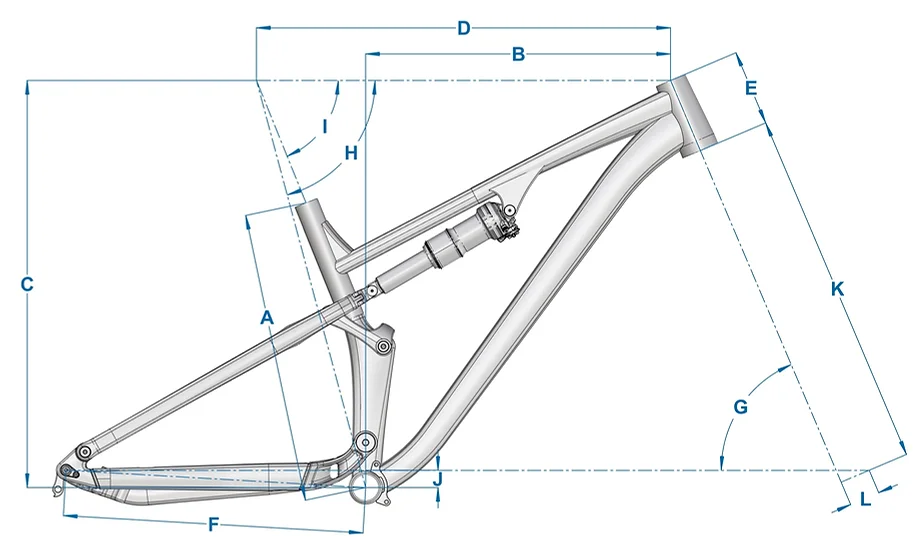

GEOMETRY
Noble mountain bikes feature forward geometry. This pairs longer top tubes with shorter stems. The net result is a fit similar to traditional mountain bike geometry, but with different handling. Forward geometry shifts the rider weight slightly forward for improved handling.
Our mountain bike geometry is built around reach. Unlike our drop bar bikes head angles and seat angles don't change between sizes and reach is a great dimension to use for fit.
FRAME SPEC
Just add dirt.
